Floor slabs constitute one of the most important structural elements in any building. These horizontal systems not only support the structure’s loads, but also define the functionality and durability of buildings. At Site and Field, as construction experts, we explain everything you need to know about floor slabs and their importance in modern construction.
What are Floor Slabs in Construction?
A floor slab is a horizontal structural element that forms the floors and ceilings of buildings. Its main function is to transmit vertical loads from the upper floors to the support elements, such as beams, walls or columns. Floor slabs are fundamental to guarantee structural stability and the adequate distribution of loads throughout the entire building.
Important fact: Floor slabs must comply with the Spanish Technical Building Code (CTE) to guarantee structural safety.
Types of Floor Slabs Most Used in Spain
One-Way Floor Slabs
One-way floor slabs are the most common in Spanish construction. They work mainly in one direction, transmitting loads towards the support beams. Among the most used types we find:
One-way floor slabs are characterized by having a span ratio greater than 2:1, which means that the longer span is at least twice the shorter one. This characteristic causes loads to be transmitted mainly in the direction of the shorter span, towards the closest supports.
Technical Characteristics of One-Way Floor Slabs
One-way floor slabs present significant advantages in terms of economy and speed of execution. Their design allows the use of prefabricated joists that are placed with standard separations of 60 to 70 cm, intercalating lightening elements such as ceramic or concrete blocks.
Key advantage: One-way floor slabs allow spans of up to 8 meters without intermediate supports, being ideal for flexible distributions in homes.
The calculation of one-way floor slabs is considerably simplified, as they can be analyzed as continuous beams. The main reinforcement is placed in the working direction (shorter span), while the distribution reinforcement is arranged perpendicularly to absorb secondary stresses and guarantee uniform load distribution.
Two-Way Floor Slabs

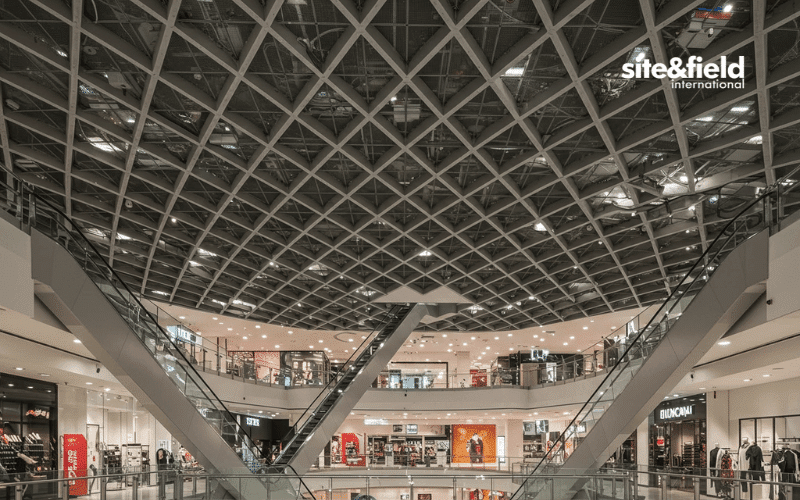

Two-way floor slabs distribute loads in both directions, making them especially efficient for large spaces. Waffle slabs are a perfect example of this type, widely used in shopping centers and offices.
Advantages of Different Types of Floor Slabs
Each type of floor slab offers specific advantages according to project needs. Prestressed joist floors, for example, allow greater spans without intermediate supports, while cast-in-place floors offer greater design flexibility.
At Site and Field, we analyze each project individually to determine the most suitable type of floor slab, considering factors such as anticipated loads, spans to be covered and specific requirements of the Technical Building Code.
Floor Slab Execution Process
Floor slab execution requires meticulous planning and compliance with strict quality standards. The process generally includes:
The preparation of formwork is crucial to guarantee the correct geometry of the floor slab. Subsequently, we proceed with reinforcement with corrugated steel bars, following the specifications of the structural project. Concreting must be carried out continuously to avoid cold joints that could compromise the resistance of the floor slab.
Professional advice: Concrete curing is fundamental. It must be kept moist for at least 7 days to achieve optimal strength.
Regulations and Standards in Spain
In Spain, floor slabs must comply with the current regulations established in the CTE. The EHE-08 Instruction specifically regulates the use of structural concrete, while the UNE-EN 1992 standard (Eurocode 2) establishes the bases for calculating concrete structures.
Design and Calculation Considerations
Floor slab design must consider multiple factors: permanent loads (self-weight, partitions, pavements), variable loads (live loads, wind, snow) and accidental actions (earthquake, fire). Structural calculation must be performed by qualified engineers using specialized software.
Current Innovations and Trends
Sustainable construction is transforming floor slab design. Composite floors with profiled steel sheeting are gaining popularity due to their speed of execution and lower weight. Additionally, precast floor slabs offer greater quality control and reduce construction times.
New technologies such as BIM (Building Information Modeling) allow optimizing floor slab design, reducing costs and improving the building’s energy efficiency.
Maintenance and Durability
A well-executed floor slab can last more than 100 years with adequate maintenance. It is important to carry out periodic inspections to detect possible cracks, reinforcement corrosion or waterproofing problems. Floor slab rehabilitation may be necessary in old buildings to adapt them to current regulations.
At Site and Field, we offer comprehensive construction and rehabilitation services for floor slabs, guaranteeing compliance with all current regulations and maximum quality in each project. Our team of specialized engineers and technicians ensures that each floor slab meets the highest standards of safety and durability.
Need advice on floor slabs? Contact our experts at Site and Field to get personalized consultation on your construction project.
