The foundation constitutes the fundamental structural element of any construction, being responsible for transmitting all the building loads to the ground safely and efficiently. A well-designed and executed foundation guarantees the stability and durability of the work throughout its useful life, avoiding costly and dangerous problems that can compromise the integrity of the building.
In this comprehensive article, we explain everything you need to know about foundation systems: from the different existing types to the materials used, through the design process, execution, and the most common pathologies. If you are planning a construction project or simply want to better understand how building foundations work, this guide will provide you with valuable and practical information.
What is foundation and its importance in construction
The foundation is the structural base that supports the total weight of a building and distributes it to the ground uniformly. This system is composed of different constructive elements that work together to guarantee the stability of the structure. Foundations represent the boundary between the construction itself and the natural soil, playing a critical role in the safety and functionality of the building.
According to Spanish building regulations, every structure must have a foundation system appropriate to the characteristics of the terrain and the expected loads. The design of foundations must consider multiple factors: the nature of the soil, the presence of groundwater, the static and dynamic loads it will support, as well as the seismic conditions of the area. A prior geotechnical study is essential to determine what type of foundation is most appropriate for each construction project.
The correct execution of the foundation plan not only affects the immediate stability of the construction but determines its long-term behavior. Problems such as differential settlements, structural cracks, or even partial collapses usually originate from deficiencies in the foundation system.
For this reason, specialized foundation companies employ highly qualified technical teams and specific machinery to guarantee the correct execution of these fundamental works. Investment in a good foundation will always be less than the costs derived from a subsequent repair, so it should never be skimped on in this crucial phase of any work.
Types of foundation: classification and characteristics
The types of foundation are mainly classified according to their depth and way of working with the terrain. This classification allows engineers to select the most suitable system based on the specific characteristics of each project. Choosing the correct type of foundation can mean the difference between safe and durable construction, or a problematic structure requiring costly subsequent interventions.
The selection of the most appropriate foundation system depends on several determining factors: the bearing capacity of the terrain, the water table level, the loads to be transmitted, the available budget, and the construction conditions of the environment. Below, we analyze in detail the main types of construction of foundations currently used.
Shallow foundations
Shallow foundations are those that transmit loads to the ground at a relatively shallow depth, generally less than three meters from the surface. This type of foundation is ideal when the terrain presents good resistant characteristics in the most superficial layers. Among the most common shallow foundations, we find various systems that adapt to different construction needs and soil conditions.
Foundation footing
The foundation footing constitutes one of the most used elements in residential and commercial building construction. It is an enlargement at the base of a pillar or wall that distributes the load over a larger area of terrain, thus reducing the pressure transmitted to the soil. Footings can be isolated, when they support a single pillar; strip, when they serve as the base for a continuous wall; or combined, when they collect the loads from several pillars.
Foundation with footings requires terrain with adequate bearing capacity and is usually executed using reinforced concrete with a steel reinforcement that absorbs tensile stresses. The dimensioning of footings must be done carefully to avoid both over-dimensioning, which unnecessarily increases the cost of the work, and under-dimensioning, which can compromise structural safety.
Foundation slab
Foundation slabs represent a comprehensive solution when loads are very high or the terrain has heterogeneous characteristics. The foundation slab consists of a continuous reinforced concrete plate that extends under the entire surface of the building, distributing loads uniformly. This system is especially effective in soils with low bearing capacity, as it significantly reduces the pressure transmitted to the ground.
Slabs can incorporate integrated foundation beams that reinforce certain areas and improve the structural behavior of the whole. This reinforcement is particularly important in areas where higher loads are concentrated, such as under pillars or load-bearing walls.
Foundation grid
The foundation grid combines the advantages of footings and slabs through a system of crossed beams that connect the support points of the pillars. This configuration creates a resistant grid that distributes loads efficiently, being particularly useful in soils with limited bearing capacity where isolated footings would be insufficient.
The foundation tie beam forms a fundamental part of this system, providing perimeter rigidity and connecting all foundation elements in a solid ensemble that works in a coordinated manner against any solicitation. This typology is widely used in industrial buildings and constructions on compressible soils.
Deep foundations
Deep foundations are used when the superficial layers of the terrain do not present sufficient resistant characteristics, making it necessary to transmit loads to deeper and more competent soil layers. These systems are essential in high-rise construction, in soils with soft superficial layers, or when there are settlement problems or high water table that advise against the use of conventional shallow foundations.

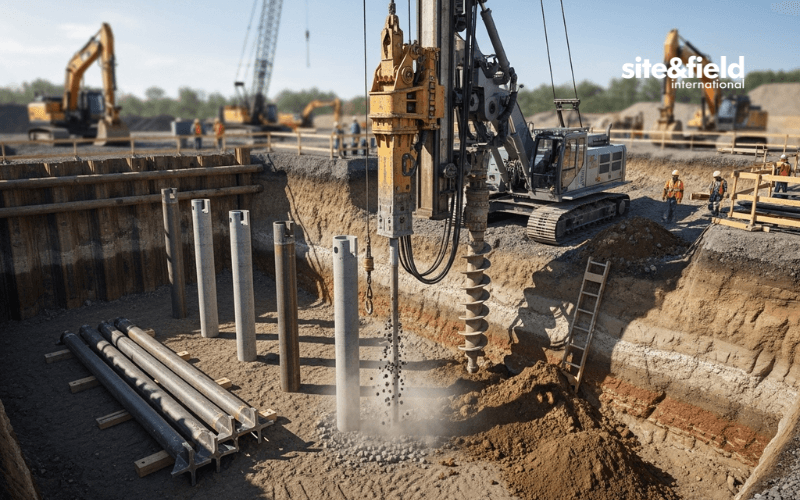

Foundation piles
Foundation piles are elongated structural elements that are introduced into the ground to reach resistant layers at depth. Foundation with piles works through two main mechanisms: end bearing, when the pile rests on a resistant layer, or friction, when resistance is obtained through lateral friction with the surrounding soil.
According to their construction process, there are precast piles that are driven by percussion, and cast-in-place piles that are executed by drilling the ground and subsequently filling with reinforced concrete. Structural systems based on piles allow depths exceeding 30 meters to be reached when geotechnical conditions require it, providing solutions for the most complicated terrains.
Foundation micropiles
Foundation with micropiles constitutes a variant of smaller diameter than conventional piles, typically between 100 and 300 millimeters. This system is especially advantageous in rehabilitation works and reinforcement of existing structures, as well as in spaces with limited access where conventional machinery cannot operate.
Micropiles are reinforced with steel tubes or corrugated bars and are injected with cement grout, creating high-strength elements that work mainly by lateral friction with the terrain. Their versatility and ease of execution make them an increasingly demanded solution by foundation companies specialized in complex interventions, especially in urban centers where space and access are limited.
Materials used in foundation systems
The materials used in foundation construction have evolved significantly, although reinforced concrete maintains its dominant position thanks to its excellent relationship between strength, durability, and cost. Concrete used in foundations must meet specific strength and durability requirements according to current technical regulations, considering factors such as soil aggressiveness, the presence of sulfates, or exposure to freeze-thaw cycles.
Reinforcing steel complements concrete by providing tensile strength and controlling cracking. In foundations, high-bond corrugated bars are used that guarantee the joint work of both materials. The protection of steel through adequate coatings is fundamental to prevent corrosion problems that could compromise the durability of the foundation.
In especially aggressive environments, such as coastal areas or soils with high salt content, stainless steels or with epoxy coatings can be used, providing additional protection. This initial investment can mean significant maintenance savings and guarantees the longevity of the structure.
Geomembranes and waterproofing sheets protect the foundation against moisture from the ground, being especially important in basements and habitable spaces below ground level. Geotechnical materials such as geotextiles and reinforcement meshes improve soil properties and facilitate foundation construction in difficult conditions.
Precast foundation incorporates industrially produced elements with high-quality standards, offering advantages in terms of execution speed and quality control, although its application requires specific transport and lifting means. This type of solution is increasingly popular in projects requiring tight execution deadlines and where final product quality is a priority.
Foundation design and execution process
The design of a foundation invariably begins with an exhaustive geotechnical study that characterizes the terrain where it will be built. This study includes borings, laboratory tests, and in-situ tests that determine soil stratigraphy, its mechanical properties, the presence of water table, and other relevant factors. With this information, engineers develop the foundation plan that defines the dimensions, depths, and reinforcements necessary for each element.
The plan must ensure that the system meets the safety and functionality requirements established by current regulations. In Spain, Eurocode 7 and the Technical Building Code establish the minimum criteria that must be met in foundation design. The safety coefficients applied guarantee that even under exceptional situations, the structure maintains its integrity.
Execution phases
The execution of the foundation must rigorously follow project specifications, starting with the precise layout of all elements. This initial phase is critical, as any error in the positioning of foundation elements can have serious consequences on the upper structure. Precision topographic equipment is used to ensure that each footing, pile, or foundation element is located exactly where the project indicates.
Excavation will be carried out with the indicated dimensions and depths, paying special attention to wall stability and control of groundwater through drainage or pumping systems when necessary. Preparation of the excavation bottom includes cleaning, leveling, and frequently, execution of a blinding concrete layer that provides a uniform base for reinforcement.
The assembly of reinforcements constitutes a critical phase requiring precision and technical supervision. Steel bars must be placed according to project specifications, guaranteeing minimum necessary covers through adequate spacers that maintain reinforcement position during concreting.
Concreting must be executed without prolonged interruptions to avoid cold joints that weaken the structure. Concrete with the consistency and strength specified in the project is used. During concrete curing, which can extend several weeks depending on climatic conditions, adequate humidity and temperature must be maintained so that the material reaches its optimal mechanical properties before significant loads are transmitted to it.
House foundation: specific considerations
The foundation of a house presents particular characteristics that differentiate it from larger projects. In residential construction, loads are usually more moderate, which in many cases allows the use of shallower, more economical, and simpler foundations to execute. However, this does not mean that correct technical analysis can be dispensed with, as problems derived from inadequate foundation in a home can be extremely costly to correct subsequently.
The process for house foundation typically begins with land selection and its corresponding geotechnical study. Depending on soil characteristics and the type of house projected, the most appropriate foundation system is selected. Strip footings under load-bearing walls and isolated footings under pillars represent the most common solution in single-family homes of one or two stories on soils with adequate bearing capacity.
In larger houses or problematic soils, it may be necessary to resort to foundation slabs or even pile systems. The decision should always be based on objective technical criteria, never on purely economic considerations that could compromise safety. It is advisable to consult with companies specialized in structures to obtain the best advice.
Installations and protection
Installations that cross the foundation deserve special attention, particularly sanitation and water supply pipes. These must be foreseen during design to avoid subsequent perforations that compromise structural stability. It is recommended to leave installation passages with sufficient dimensions and adequate protections.
Foundation waterproofing is fundamental to prevent humidity by capillarity in housing walls. Waterproofing sheets and anti-humidity barriers are applied that protect construction throughout its useful life. Additionally, in areas with expansive or shrinkable soil, specific measures must be adopted such as stiffened tie beams or foundation systems that can absorb ground movements without transmitting harmful stresses to the upper structure of the house.
Common foundation pathologies and their prevention
Foundation pathologies can manifest in various ways, with cracks in structural elements being one of the most evident symptoms. Differential settlements, where different parts of the building descend unequal amounts, generate stresses for which the structure was not designed, potentially causing significant damage. These pathologies usually originate from insufficient geotechnical studies, inadequate designs, deficient execution, or unforeseen modifications in ground conditions.
Among the most frequent construction pathologies related to foundations, we find reinforcement corrosion, caused by lack of adequate cover or exposure to aggressive environments. Also common are settlement problems caused by changes in water table level or additional loads in nearby areas that modify the stress state of the ground.
Prevention strategies
The prevention of foundation problems begins with adequate terrain characterization and conservative design that considers all foreseeable solicitations. During execution, rigorous quality control of materials and construction processes is essential. Experienced foundation companies implement supervision protocols that verify each phase of work, from excavation to final concrete curing.
The use of precast foundation with industrial quality control can reduce some risks associated with in-situ execution. Precast elements are produced in controlled conditions that guarantee uniformity of mechanical and dimensional properties.
Preventive maintenance of foundations, although infrequent in common practice, can detect incipient problems before they become serious pathologies. Periodic inspection of visible elements, control of possible movements through topographic leveling, and surveillance of surrounding ground conditions allow early action.
When problems are detected, underpinning and reinforcement techniques exist that can stabilize the situation, although they invariably result more costly than having correctly executed the foundation from the start. This underscores the importance of not skimping on this fundamental phase of any construction and trusting qualified professionals for its design and execution.
Innovations and future trends in foundations
Sustainable materials and low environmental impact are gaining ground in modern foundation design. Concretes with additions of recycled materials, low carbon footprint cements, or the use of recycled geotechnical materials represent alternatives that reduce environmental impact without compromising technical performance. The construction industry, aware of its environmental responsibility, actively researches solutions that minimize natural resource consumption and waste generation.
Ground improvement techniques offer increasingly efficient alternatives to traditional deep foundations in many situations. Systems such as expansive resin injection, dynamic compaction, or jet-grouting allow improvement of the mechanical properties of existing soil, enabling the use of shallow foundations in soils that would previously have required more costly solutions.
These techniques, combined with BIM (Building Information Modeling) for foundation design and planning, are transforming the way foundation companies approach projects. Digital modeling allows simulation of the behavior of different solutions before execution, optimizing resources and improving final results. The integration of monitoring sensors in foundations also allows continuous monitoring of structural behavior, facilitating predictive maintenance and early detection of anomalies.
The future of foundations lies in digitalization and sustainability. The most innovative construction companies are adopting these technologies to offer more efficient, economical, and environmentally friendly solutions, without ever compromising the safety and durability that must characterize every foundation.
Conclusion
Foundations represent the most critical element of any construction, being responsible for safely transmitting all loads to the ground. The correct selection of foundation type, the use of appropriate materials, rigorous design, and professional execution are determining factors to guarantee the stability and durability of any building.
Investing in an adequate foundation from the project start is always the most appropriate decision, both from an economic and safety point of view. The costs of repairing problems in existing foundations far exceed the budget of executing them correctly from the beginning. Therefore, it is essential to have qualified professionals who carry out exhaustive geotechnical studies and design solutions adapted to the specific characteristics of each project and terrain.
Frequently Asked Questions
What types of foundations exist?
There are two major categories of foundations: shallow foundations (footings, slabs, and grids) that transmit loads to depths less than 3 meters, and deep foundations (piles and micropiles) that reach resistant strata at greater depth. The choice depends on terrain characteristics and loads to be supported.
How much does it cost to make a house foundation?
The cost of a single-family house foundation varies depending on the type of foundation needed, terrain characteristics, and project dimensions. It can represent between 8% and 15% of the total construction budget. It is essential to carry out a prior geotechnical study to determine the most suitable solution and obtain accurate budgets.
What is a foundation footing?
A foundation footing is an enlargement at the base of a pillar or wall that distributes loads over a larger surface area of ground. It can be isolated (supports a pillar), strip (serves as the base for a wall), or combined (collects loads from several pillars). It is usually built with reinforced concrete.
When are foundation piles used?
Foundation piles are used when superficial layers of terrain do not have sufficient bearing capacity and it is necessary to transmit loads to deeper and more resistant layers. They are essential in high-rise construction, soils with soft superficial layers, or when there are high water table problems.
What materials are used in foundations?
The main material is reinforced concrete, which combines concrete with corrugated steel reinforcements. Also used are waterproofing geomembranes, geotextiles, precast elements, and in aggressive environments, stainless steels or with epoxy protection. The choice depends on ground conditions and durability requirements.
